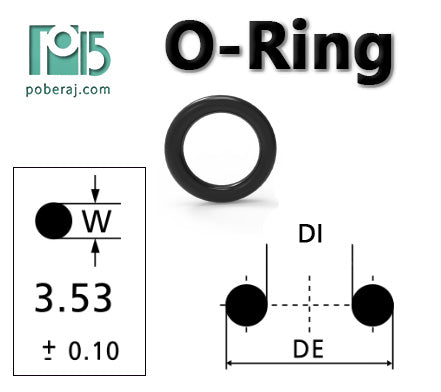

P0170 O-Ring serie standard 2 (3.53 Espesor)

Tabla de producto

¿Necesita más información sobre este producto? Se encuentra a su disposición la ficha completa aquí.

Nº COD

Ø Interior

Ø Exterior

2-201

4,34 mm

11,40 mm

2-202

5,94 mm

13,00 mm

2-203

7,52 mm

14,58 mm

2-204

9,12 mm

16,18 mm

2-205

10,69 mm

17,75 mm

2-206

12,29 mm

19,35 mm

2-207

13,87 mm

20,93 mm

2-208

15,47 mm

22,53 mm

2-209

17,04 mm

24,10 mm

2-210

18,64 mm

25,70 mm

2-211

20,22 mm

27,28 mm

2-212

21,82 mm

28,88 mm

2-213

23,39 mm

30,45 mm

2-214

24,99 mm

32,05 mm

2-215

26,57 mm

33,63 mm

2-216

28,17 mm

35,23 mm

2-217

29,74 mm

36,80 mm

2-218

31,34 mm

38,40 mm

2-219

32,92 mm

39,98 mm

2-220

34,25 mm

41,58 mm

2-221

36,09 mm

43,15 mm

2-222

37,69 mm

44,75 mm

2-223

40,87 mm

47,93 mm

2-224

44,04 mm

51,10 mm

2-225

47,22 mm

54,28 mm

2-226

50,39 mm

57,45 mm

2-227

53,57 mm

60,63 mm

2-228

56,74 mm

63,80 mm

2-229

59,92 mm

66,98 mm

2-230

63,09 mm

70,15 mm

2-231

66,27 mm

73,33 mm

2-232

69,44 mm

76,50 mm

2-233

72,62 mm

79,68 mm

2-234

75,79 mm

82,85 mm

2-235

78,97 mm

86,03 mm

2-236

82,14 mm

89,20 mm

2-237

85,32 mm

92,38 mm

2-238

88,49 mm

95,55 mm

2-239

91,67 mm

98,73 mm

2-240

94,84 mm

101,90 mm

2-241

98,02 mm

105,08 mm

2-242

101,19 mm

108,25 mm

2-243

104,37 mm

111,43 mm

2-244

107,54 mm

114,60 mm

2-245

110,72 mm

117,78 mm

2-246

113,89 mm

120,95 mm

2-247

117,07 mm

124,13 mm

2-248

120,24 mm

127,30 mm

2-249

123,42 mm

130,48 mm

2-250

126,59 mm

133,65 mm

2-251

129,77 mm

136,83 mm

2-252

132,94 mm

140,00 mm

2-253

136,12 mm

143,18 mm

2-254

139,29 mm

146,35 mm

2-255

142,47 mm

149,53 mm

2-256

145,64 mm

152,70 mm

2-257

148,82 mm

155,88 mm

2-258

151,99 mm

159,05 mm

2-259

158,34 mm

165,40 mm

2-260

164,69 mm

171,75 mm

2-261

171,04 mm

178,10 mm

2-262

177,39 mm

184,45 mm

2-263

183,74 mm

190,80 mm

2-264

190,09 mm

197,15 mm

2-265

196,44 mm

203,50 mm

2-266

202,79 mm

209,85 mm

2-267

209,14 mm

216,20 mm

2-268

215,49 mm

222,55 mm

2-269

221,84 mm

228,90 mm

2-270

228,19 mm

235,25 mm

2-271

234,54 mm

241,60 mm

2-272

240,89 mm

247,95 mm

2-273

247,24 mm

254,30 mm

2-274

253,59 mm

260,65 mm

2-275

266,29 mm

273,35 mm

2-276

278,99 mm

286,05 mm

2-277

291,69 mm

298,75 mm

2-278

304,39 mm

311,45 mm

2-279

329,79 mm

336,85 mm

2-280

355,19 mm

362,25 mm

2-281

380,59 mm

387,65 mm

2-282

405,26 mm

412,32 mm

2-283

430,66 mm

437,72 mm

2-284

456,06 mm

463,12 mm
